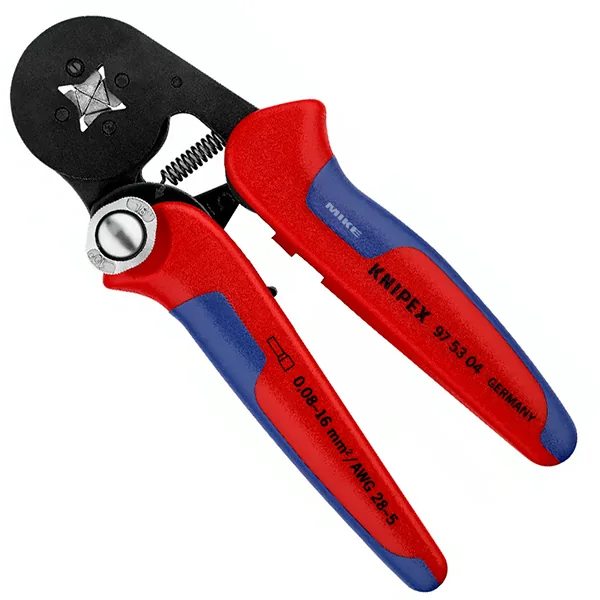

KNIPEX 97 53 04 Self-Adjusting Crimping Pliers for wire ferrules with lateral access 180 mm burnished with multi-component handles
97 53 04 Self-Adjusting Crimping Pliers for wire ferrules For wire ferrules up to 16 mm². Adjusts automatically to the wire ferrule size for precise and quick crimping. Crimping of wire ferrules according to DIN 46228 parts 1+4. UL approval in conjunction with KNIPEX wire ferrules 97 99 330 - 399. Repetitive, high crimping quality due to ratchet mechanism (unlockable). Precise, factory calibrated crimping pressure.
Efficient lever action ensures a high crimping force. Narrow handle width. Ergonomic and comfortable handle, smooth operation and lightweight. Special quality chrome vanadium electric steel, oil-hardened. with square compression. also for Twin wire ferrules up to 2 x 6 mm² or 2 x AWG 10. - Application: Wire ferrules- Capacity in square millimetres: 0.08 — 16mm²- Number of crimp profiles: 1- AWG: 28 — 6
Specifications
- Artikelnummer: 97 53 04
- Weight: 459 g
- Surface: burnished
- Handles: with multi-component handles
- AWG: 28 - 6
- Application Crimp: Wire ferrules
- Capacity mm²: 0.08 - 16 mm²
- Crimp profile: Square crimp automatic
- Number crimp profiles: 1
- Item length: 180 mm
- RoHs: n
- Product name receipt (16 characters): Crimping Pliers
- Item width: 77 mm
- Item height: 21 mm
Keywords: crimping pliers wire end ferrules set, crimp set, crimping pliers set, wire end ferrules set, crimping pliers, copper pipe crimping pliers, crimping tool wire end sleeves, network tool, crimping tool 16mm2, wire end ferrule pliers 16mm2, wire end sleeve crimping pliers
- Artikelnummer: 97 53 04
- Weight: 459 g
- Surface: burnished
- Handles: with multi-component handles
- AWG: 28 - 6
- Application Crimp: Wire ferrules
- Capacity mm²: 0.08 - 16 mm²
- Crimp profile: Square crimp automatic
- Number crimp profiles: 1
- Item length: 180 mm
- RoHs: n
- Product name receipt (16 characters): Crimping Pliers
- Item width: 77 mm
- Item height: 21 mm
