KNIPEX 97 53 09 Self-Adjusting Crimping Pliers for wire ferrules with front loading 190 mm burnished with multi-component handles

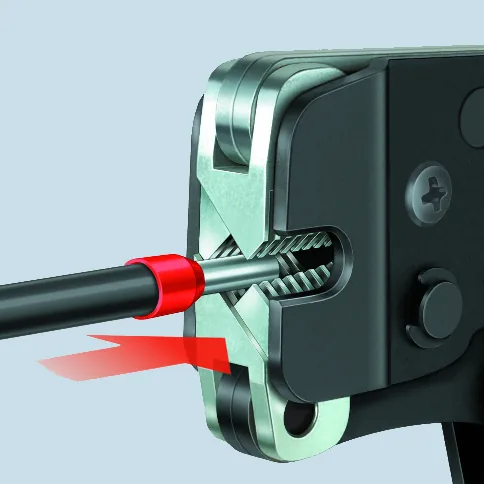

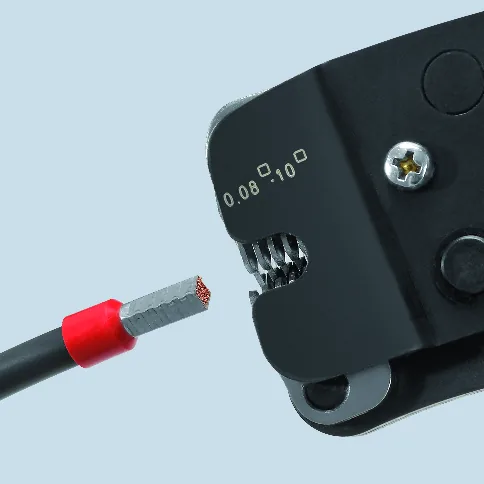

97 53 09 Self-Adjusting Crimping Pliers for wire ferrules For crimping wire ferrules according to DIN 46228 parts 1 + 4. Self-adjusting adaptation to the desired wire ferrule size: no wrong crimps caused by using the wrong die. Frontal insertion of the wire ferrules into the pliers. Repetitive, high crimping quality due to ratchet mechanism (unlockable). Precise, factory calibrated crimping pressure. Efficient lever action ensures a high crimping force. Handy shape and low weight provide high operation comfort. UL approved crimping together with KNIPEX wire ferrules 97 99 330
- 399. compression from 0.08

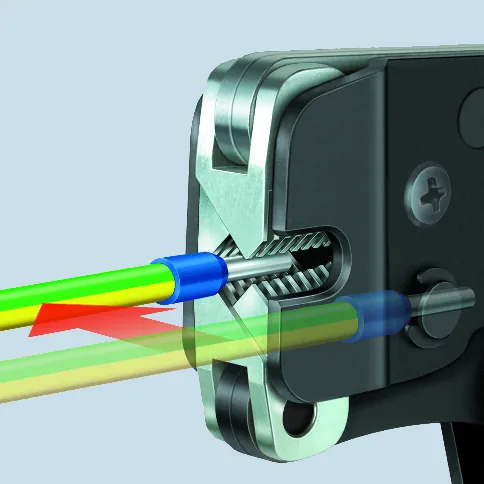

- 10.0 and 16.0 mm² in one profile. with selector lever for setting the crimping area either to 0.08
- 10 mm² or 16 mm²
- Application: Wire ferrules- Capacity in square millimetres: 0.08 — 10 / 16mm²- Number of crimp profiles: 1- AWG: 28 — 6
Specifications
- Artikelnummer: 97 53 09
- Weight: 486 g
- Surface: burnished
- Handles: with multi-component handles
- AWG: 28 - 6
- Application Crimp: Wire ferrules
- Capacity mm²: 0.08 - 10 mm²
- Crimp profile: Square crimp automatic
- Number crimp profiles: 1
- Item length: 190 mm
- RoHs: n
- Product name receipt (16 characters): Crimping Pliers
- Item width: 20 mm
- Item height: 23 mm
Keywords: crimping pliers wire end ferrules set, crimp set, wire ferrule pliers, crimping pliers set, wire end ferrules set, crimping pliers, copper pipe crimping pliers, crimping tool wire end sleeves, Crimping pliers, wire end ferrule pliers, wire end ferrule pliers 16mm2, wire end sleeve pliers
- Artikelnummer: 97 53 09
- Weight: 486 g
- Surface: burnished
- Handles: with multi-component handles
- AWG: 28 - 6
- Application Crimp: Wire ferrules
- Capacity mm²: 0.08 - 10 mm²
- Crimp profile: Square crimp automatic
- Number crimp profiles: 1
- Item length: 190 mm
- RoHs: n
- Product name receipt (16 characters): Crimping Pliers
- Item width: 20 mm
- Item height: 23 mm
