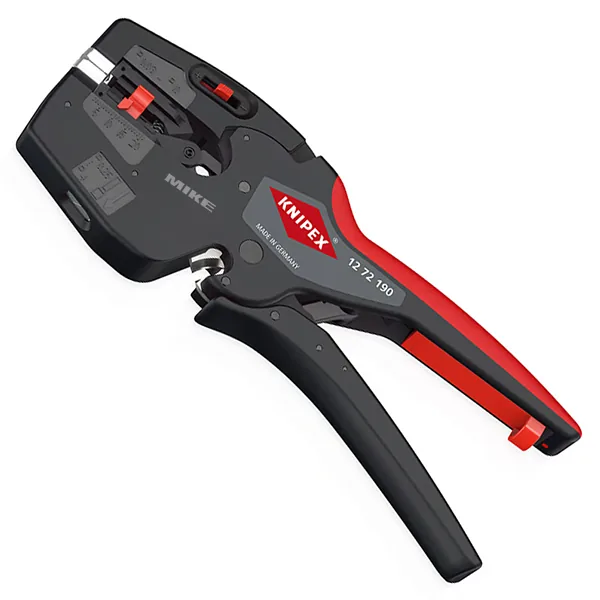

KNIPEX 12 72 190 NexStrip® Multi-Tool for Electricians 190 mm with non-slip plastic grips
12 72 190 KNIPEX NexStrip® Perfect crimping: fast and even square crimping for individual wire ferrules, the ratchet crimping mechanism guarantees the required crimping pressure. Precise stripping: automatically adapts to the respective cable diameter and ensures consistent stripping lengths with the adjustable length stop especially with repetitive work. Multi-component grips ensure non-slip, comfortable handling.
Quick, precise square crimp of single wire ferrules according to DIN 46228 parts 1+4, self-adjusts for sizes 0.25 – 4 mm² / 2 x 2.5 mm² – allows for quick crimping between different sizes. Repetitive, high crimping quality due to ratcheting mechanism with a complete crimping cycle.
Stripping with fine adjustment – for optimal adjustment to special materials or temperature conditions for flexible and solid conductors between 0.03 and 10 mm² (AWG 32-8). Clean cut of copper and aluminum conductors fine-stranded up to 10 mm² (AWG 8), solid up to 6 mm² (AWG 10). High-quality housing made of glass fibre reinforced plastic.
For the electrical trade: for domestic installations and wiring of electronical devices, such as PLC (programmable logic controller).
Specifications
- Artikelnummer: 12 72 190
- Weight: 170 g
- Handles: with non-slip plastic grips
- AWG: 32 - 8
- Capacity mm²: 0.25 - 4 mm²
- Crimp profile: Square crimp
- Stripping capacity mm²: 0.03 - 10 mm²
- Item length: 190 mm
- RoHs: n
- Product name receipt (16 characters): Insulation Stripper
- Item width: 17 mm
- Item height: 110 mm
Keywords: strip, Fine adjustment, wire strippers, stripping pliers, electrician tools, electrical, hand tools, pincers, industry, industry needs, edge setter/joggler
- Artikelnummer: 12 72 190
- Weight: 170 g
- Handles: with non-slip plastic grips
- AWG: 32 - 8
- Capacity mm²: 0.25 - 4 mm²
- Crimp profile: Square crimp
- Stripping capacity mm²: 0.03 - 10 mm²
- Item length: 190 mm
- RoHs: n
- Product name receipt (16 characters): Insulation Stripper
- Item width: 17 mm
- Item height: 110 mm
| SKU | Image | Price VNĐ | Product name & short description | |
|---|---|---|---|---|
| 12 49 21 |
|
665.000
|
KNIPEX 12 49 21 Spare blades block for 12 42 195 and 12 72 190
KNIPEX 12 49 21 Spare blades block for 12 42 195 and 12 72 190
|
|
| 12 49 23 |
|
86.000
|
KNIPEX 12 49 23 Spare length stop for 12 42 / 52 195, 12 72 190, 12 40 200
KNIPEX 12 49 23 Spare length stop for 12 42 / 52 195, 12 72 190, 12 40 200
|
