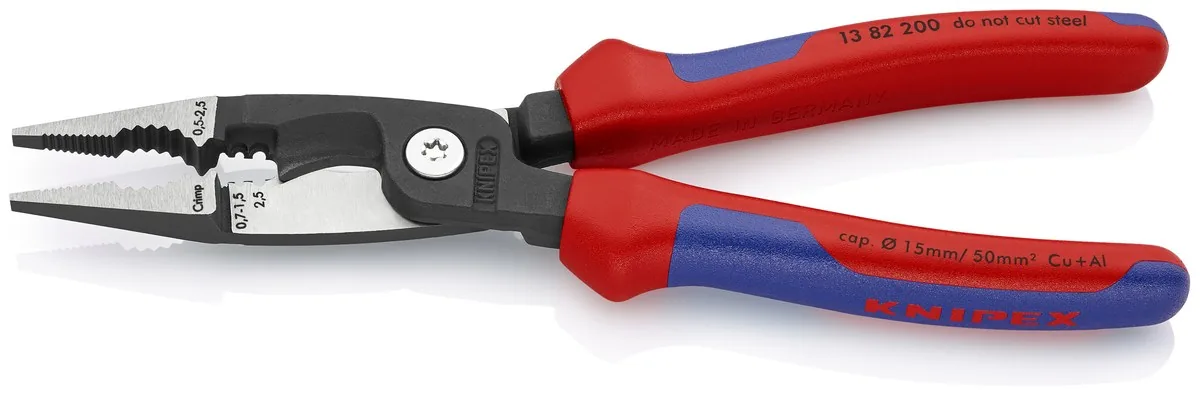

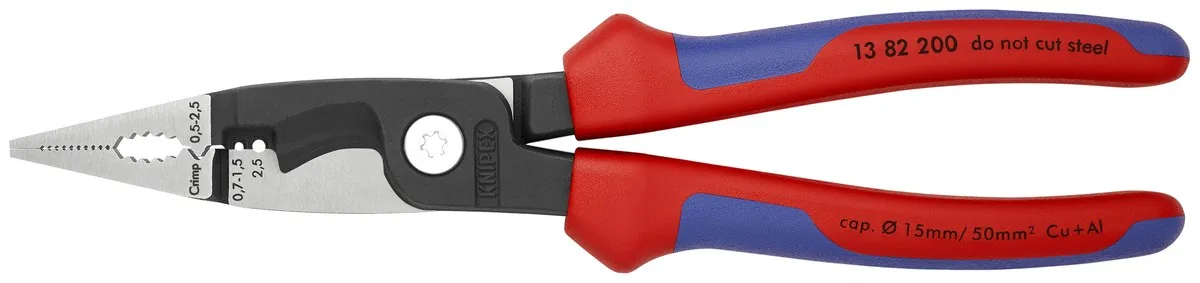

KNIPEX 13 82 200 Pliers for Electrical Installation 200 mm black atramentized with comfort handles polished
13 82 200 Pliers for Electrical Installation 6 functions in one pair of pliers. to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules. Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material.
Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes. Stripping holes for conductors of 0.75
- 1.5 mm² and 2.5 mm². Crimping die for wire ferrules 0.5
- 2.5 mm². Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm. Slim dimensions for easy access
Bolted joint: precise, zero backlash operation of pliers.
With comfort handles made of three ergonomic components for optimised handling and with two KNIPEXtend interfaces for extensions. - Cutting capacity copper cable, multiple-stranded: Ø 15mm- Cutting capacity copper cable, multiple-stranded: 50mm²- Stripping capacity for single strands: 0.75 — 1.5mm² / 2.5mm²- Capacity in square millimetres: 0.5 — 2.5mm²- AWG: 1 / 0
Specifications
- Artikelnummer: 13 82 200
- Weight: 266 g
- Surface: black atramentized
- Handles: with comfort handles
- Head: polished
- AWG: 1 / 0
- Capacity mm²: 0.5 - 2.5 mm²
- Crimp profile: Mandrel-Crimp
- Cutting capacity copper cable, multiple-stranded (diameter): 15 Ø mm
- Cutting capacity copper cable, multiple-stranded: 50 mm
- Jaw form: flat jaws
- Joint design: Bolted joint
- Stripping capacity Diametre: 15 Ø mm
- Stripping capacity: 0.75 - 1.5 mm²
- Item length: 200 mm
- RoHs: n
- Carbon footprint (PCF): 531 g CO₂e
- Percentage of recycled material: > 90% %
- Item width: 115 mm
- Item height: 20 mm
- BAB565: Elektro-Installationszange
- BAB576: 266 kg
- BAE321: flache Backen
- EFDE0001: false
Keywords: wire stripper, wire strippers, wire-stripping tool, stripper, cable knife, Wire stripper, cable stripping knife, combination pliers, cable stripping tool, wire-stripping tools, cable peeling machine, insulating pliers, stripping tool, insulation stripper, lsa
- Artikelnummer: 13 82 200
- Weight: 266 g
- Surface: black atramentized
- Handles: with comfort handles
- Head: polished
- AWG: 1 / 0
- Capacity mm²: 0.5 - 2.5 mm²
- Crimp profile: Mandrel-Crimp
- Cutting capacity copper cable, multiple-stranded (diameter): 15 Ø mm
- Cutting capacity copper cable, multiple-stranded: 50 mm
- Jaw form: flat jaws
- Joint design: Bolted joint
- Stripping capacity Diametre: 15 Ø mm
- Stripping capacity: 0.75 - 1.5 mm²
- Item length: 200 mm
- RoHs: n
- Carbon footprint (PCF): 531 g CO₂e
- Percentage of recycled material: > 90% %
- Item width: 115 mm
- Item height: 20 mm
- BAB565: Elektro-Installationszange
- BAB576: 266 kg
- BAE321: flache Backen
- EFDE0001: false
