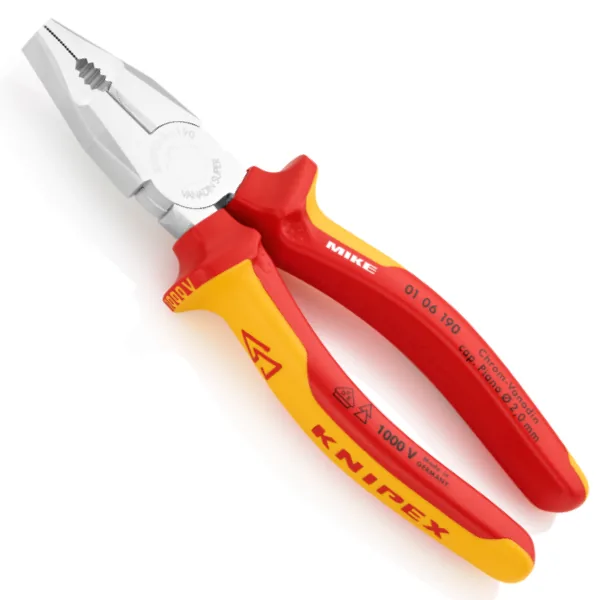

KNIPEX 01 06 190 Combination Pliers Chrome Vanadium 190 mm chrome-plated insulated with multi-component grips, VDE-tested chrome-plated
01 06 190 Combination Pliers for heavy duty use due to wear-resistant gripper jaws. With gripping zones for flat and round material, suitable for versatile use. With cutting edges for soft, hard and piano wire. Long cutting edges for thicker cables. Cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC. Particularly wear resistant gripping jaws; hardness of the gripping jaws approx. 53 HRC. - Cutting capacities hard wire (diameter): Ø 2.5mm- Cutting capacities piano wire (diameter): Ø 2.0mm- Cutting capacity copper cable, multiple-stranded: Ø 13.0mm- Cutting capacity copper cable, multiple-stranded: 25.0mm²- VDE tested: yes
Specifications
- Artikelnummer: 01 06 190
- Weight: 320 g
- Surface: chrome-plated
- Handles: insulated with multi-component grips, VDE-tested
- Head: chrome-plated
- Application image 12: Cutting edges with bevel
- Cutting capacity copper cable, multiple-stranded (diameter): 13 Ø mm
- Cutting capacity copper cable, multiple-stranded: 25 mm
- Cutting capacities hard wire (diameter): 2.5 mm
- Cutting capacities piano wire (diameter): 2 mm
- DIN: DIN ISO 5746, DIN EN 60900
- IEC: IEC 60900
- Item length: 190 mm
- RoHs: n
- Carbon footprint (PCF): 571 g CO₂e
- Percentage of recycled material: > 90% %
- Product name receipt (16 characters): Combination Pliers
- Item width: 65 mm
- Item height: 22 mm
- EFDE0001: -
- BAB010: WAA090
- BAB521: DIN ISO 5746
- BAB565: Kombizange Chrom-Vanadin
- BAB576: 320 kg
- EFDE0001: true
Keywords: dry construction tool, dry construction, piston ring clamp, pliers, slide hammer, piston ring pliers, hose clamp pliers, drywall pliers, engineer, hose clamp, mini pliers, crimping pliers, klauke, hose clamps, axle boot pliers
- Artikelnummer: 01 06 190
- Weight: 320 g
- Surface: chrome-plated
- Handles: insulated with multi-component grips, VDE-tested
- Head: chrome-plated
- Application image 12: Cutting edges with bevel
- Cutting capacity copper cable, multiple-stranded (diameter): 13 Ø mm
- Cutting capacity copper cable, multiple-stranded: 25 mm
- Cutting capacities hard wire (diameter): 2.5 mm
- Cutting capacities piano wire (diameter): 2 mm
- DIN: DIN ISO 5746, DIN EN 60900
- IEC: IEC 60900
- Item length: 190 mm
- RoHs: n
- Carbon footprint (PCF): 571 g CO₂e
- Percentage of recycled material: > 90% %
- Product name receipt (16 characters): Combination Pliers
- Item width: 65 mm
- Item height: 22 mm
- EFDE0001: -
- BAB010: WAA090
- BAB521: DIN ISO 5746
- BAB565: Kombizange Chrom-Vanadin
- BAB576: 320 kg
- EFDE0001: true
