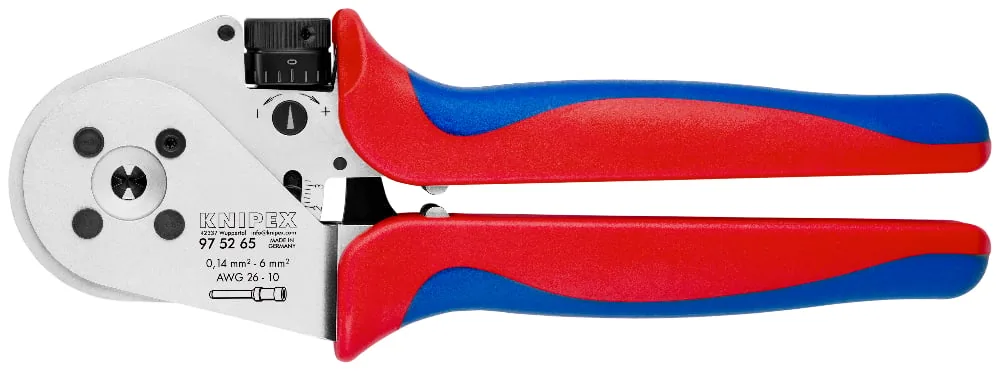

KNIPEX 97 52 65 Four-Mandrel Crimping Pliers for turned contacts 230 mm chrome-plated with multi-component handles chrome-plated

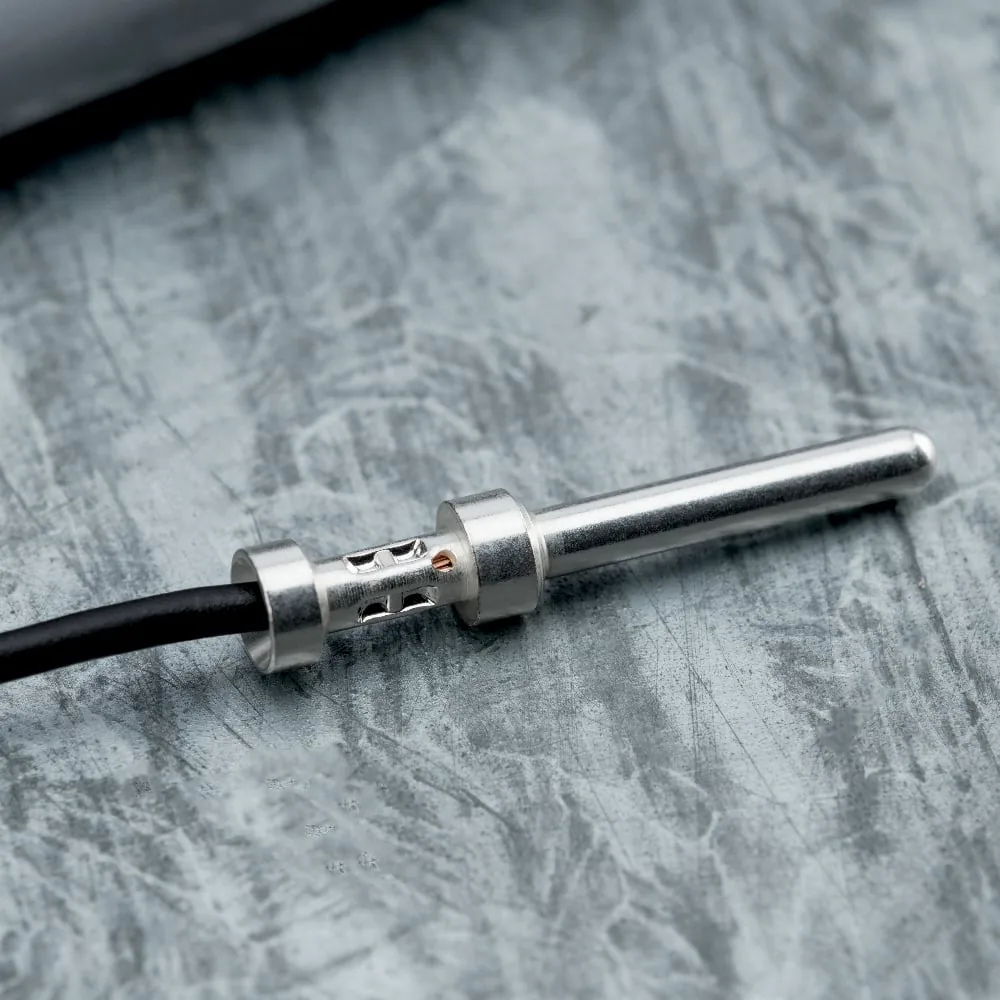

97 52 65 Four-Mandrel Crimping Pliers for turned contacts With mounted contact holder for crimping turned pin and socket contacts from Harting, Phoenix Contact, TE Connectivity, Ilme, Amphenol®, Walther and Weidmüller. Crimp mandrel feed adjustable in steps of 0.01 mm using the adjusting wheel. Reliable crimping thanks to synchronised feed of the crimping mandrels.

Process-secure and consistently high crimp quality thanks to IEC 60352-compliant trigger lock (positive lock, can be unlocked). Checking of default setting with enclosed test gauge. The range of applications of the crimping pliers can be extended by exchanging the contact holders of various contact manufacturers.

Pliers in plastic case with foam tray and mounted (exchangeable) contact holder. fine adjustment of pressure depending on the conductor's diameter by means of adjusting wheel. locator for positioning the contacts. with table for calculating the settings. pliers in a plastic case with foam insert. - Application: turned contacts (Harting; Ilme; Phoenix; Amphenol®; Walther; HTS; Contact; Weidmüller)- Capacity in square millimetres: 0.14 — 6mm²- AWG: 26 — 10- Number of crimp profiles: 1- Max. contact diameter: 7.5mm

Specifications

• Artikelnummer: 97 52 65
• Weight: 676 g
• Surface: chrome-plated
• Handles: with multi-component handles
• Head: chrome-plated
• AWG: 26 - 10
• Application Crimp: turned contacts (Harting; Ilme; Phoenix; Amphenol®; Walther; HTS; Contact; Weidmüller)
• Application: Application: Suitable for the following connector (housing) contact series Amphenol®: C146 D; DD; M Harting: HAN C®; HAN D®; HAN E® Ilme: CC; CD; CX Phoenix Contact: CK1.6; CK2.5; CK4.0; HC-B TE Connectivity: HND; HE/HA; HVT; HSM; HSK Walther: Series A; D Weidmüller: HD; HE; CM5 modules
• Capacity mm²: 0.14 - 6 mm²
• Max. contact diameter: 7.5 Ø mm
• Crimp profile: Four-Mandrel-Crimp
• Number crimp profiles: 1
• Item length: 230 mm
• RoHs: n
• Product name receipt (16 characters): Crimping Pliers
• Item width: 85 mm
• Item height: 54 mm
