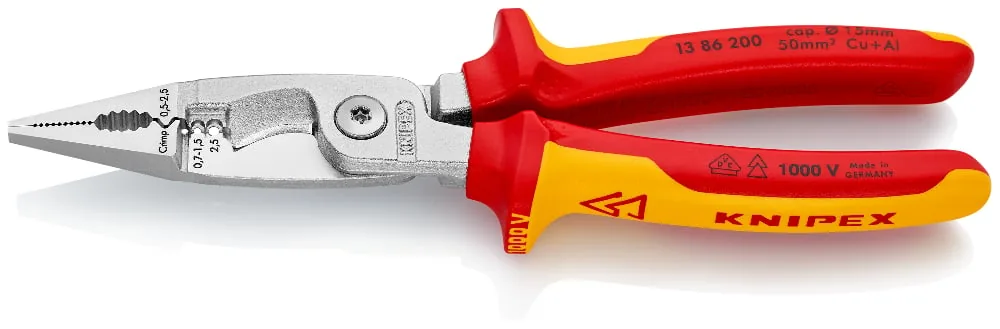

KNIPEX 13 86 200 Pliers for Electrical Installation 200 mm chrome-plated insulated with multi-component grips, VDE-tested chrome-plated

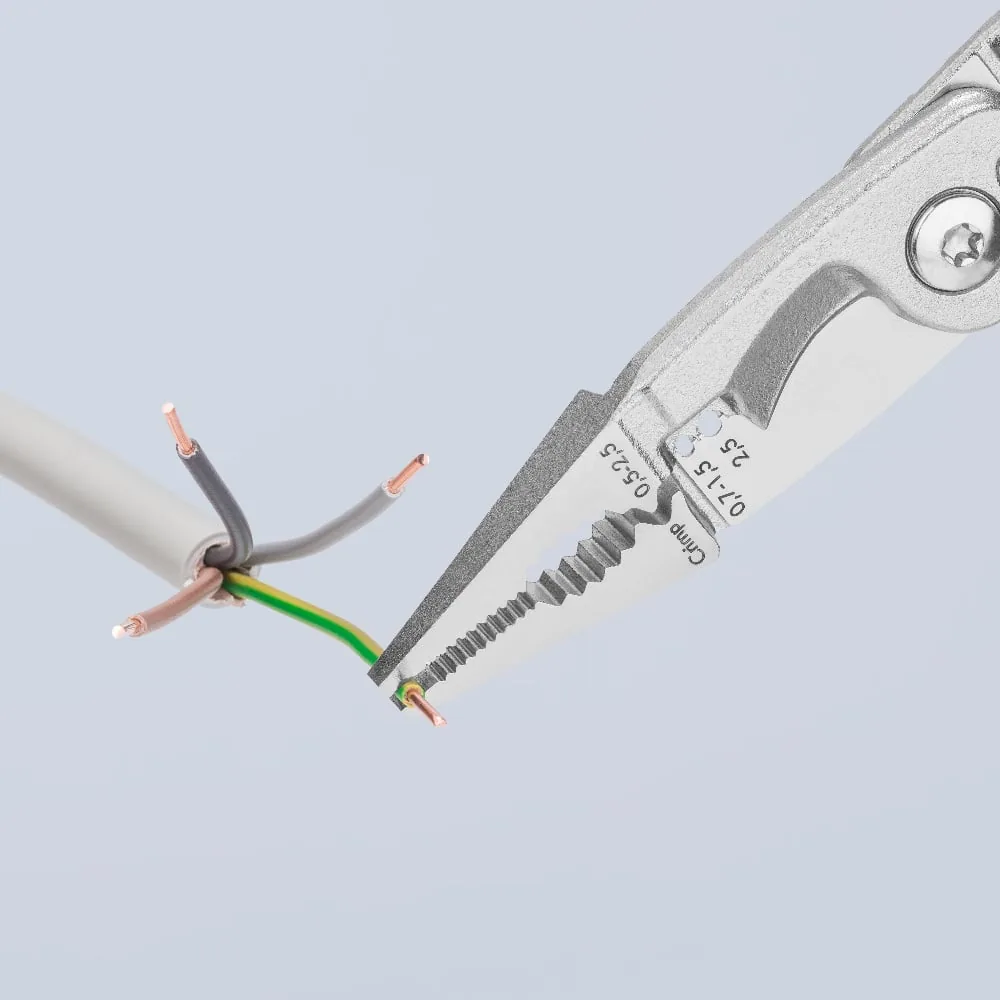

13 86 200 Pliers for Electrical Installation 6 functions in one pair of pliers. to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules. Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material.

Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes. Stripping holes for conductors of 0.75 - 1.5 mm² and 2.5 mm². Crimping die for wire ferrules 0.5 - 2.5 mm². Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm. Slim dimensions for easy access.

Bolted joint: precise, zero backlash operation of pliers. - Cutting capacity copper cable, multiple-stranded: Ø 15mm- Cutting capacity copper cable, multiple-stranded: 50mm²- Stripping capacity for single strands: 0.75 — 1.5mm² / 2.5mm²- Capacity in square millimetres: 0.5 — 2.5mm²- AWG: 1 / 0- VDE tested: yes

Specifications

• Artikelnummer: 13 86 200
• Weight: 272 g
• Surface: chrome-plated
• Handles: insulated with multi-component grips, VDE-tested
• Head: chrome-plated
• AWG: 1 / 0
• Capacity mm²: 0.5 - 2.5 mm²
• Crimp profile: Mandrel-Crimp
• Cutting capacity copper cable, multiple-stranded (diameter): 15 Ø mm
• Cutting capacity copper cable, multiple-stranded: 50 mm
• Jaw form: flat jaws
• Joint design: Bolted joint
• IEC: IEC 60900
• Stripping capacity Diametre: 15 Ø mm
• Stripping capacity: 0.75 - 1.5 mm²
• Item length: 200 mm
• RoHs: n
• Carbon footprint (PCF): 531 g CO₂e
• Percentage of recycled material: > 90% %
• Product name receipt (16 characters): Install pliers
• Item width: 85 mm
• Item height: 20 mm
• EFDE0001: -
• EFDE0001: true
