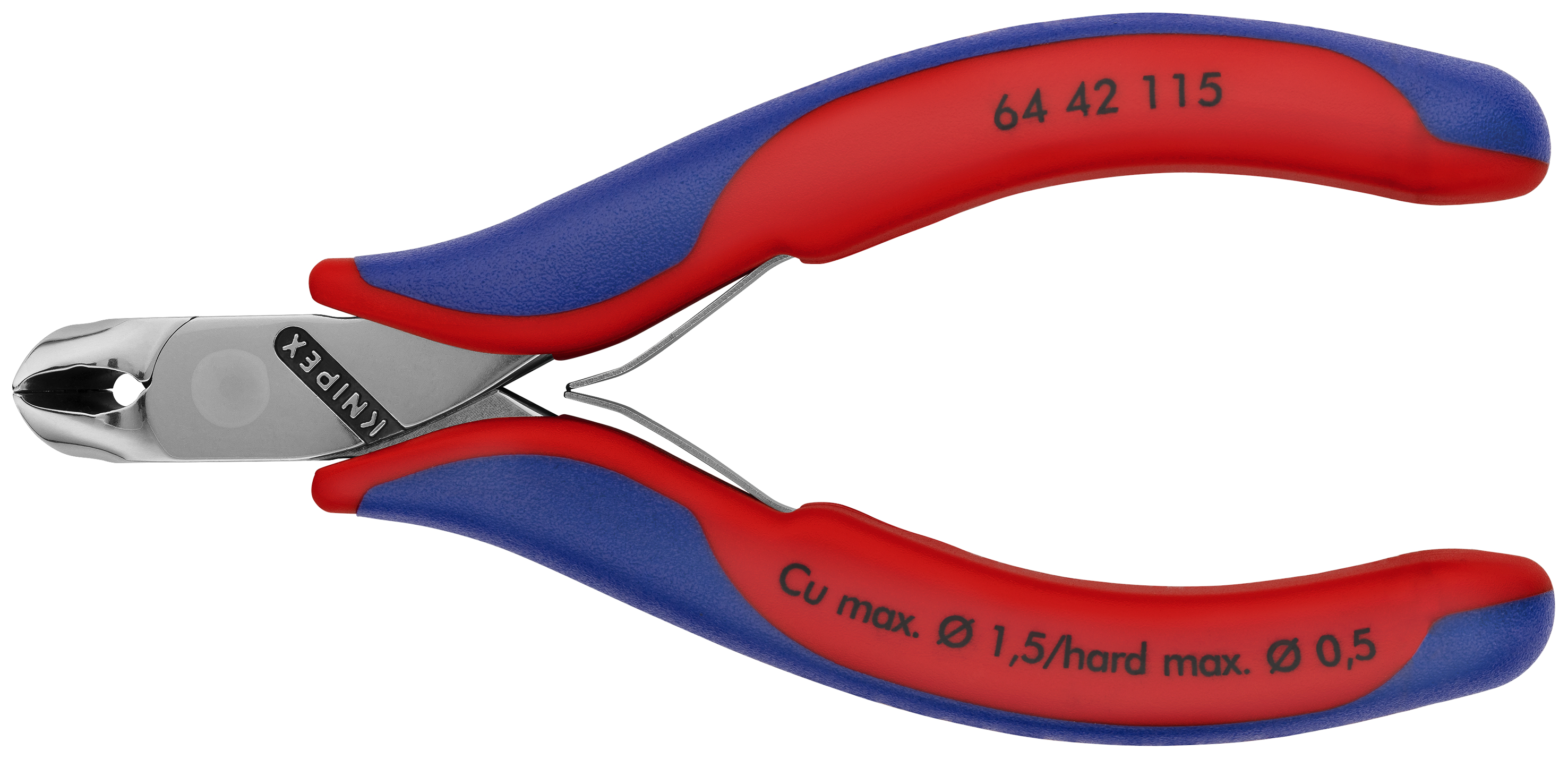

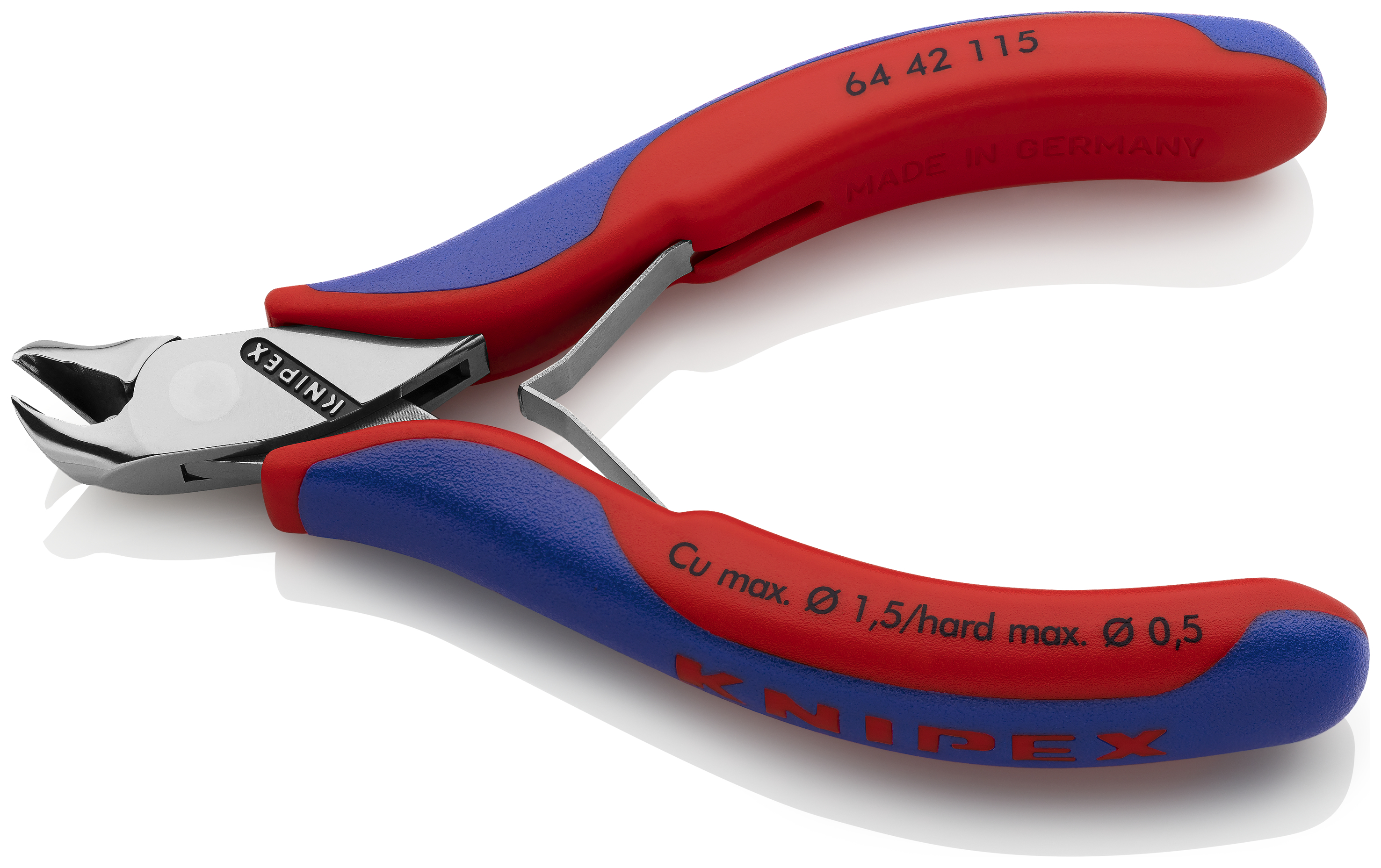

KNIPEX 64 42 115 SB Electronics End Cutting Nipper 115 mm with multi-component handles mirror polished

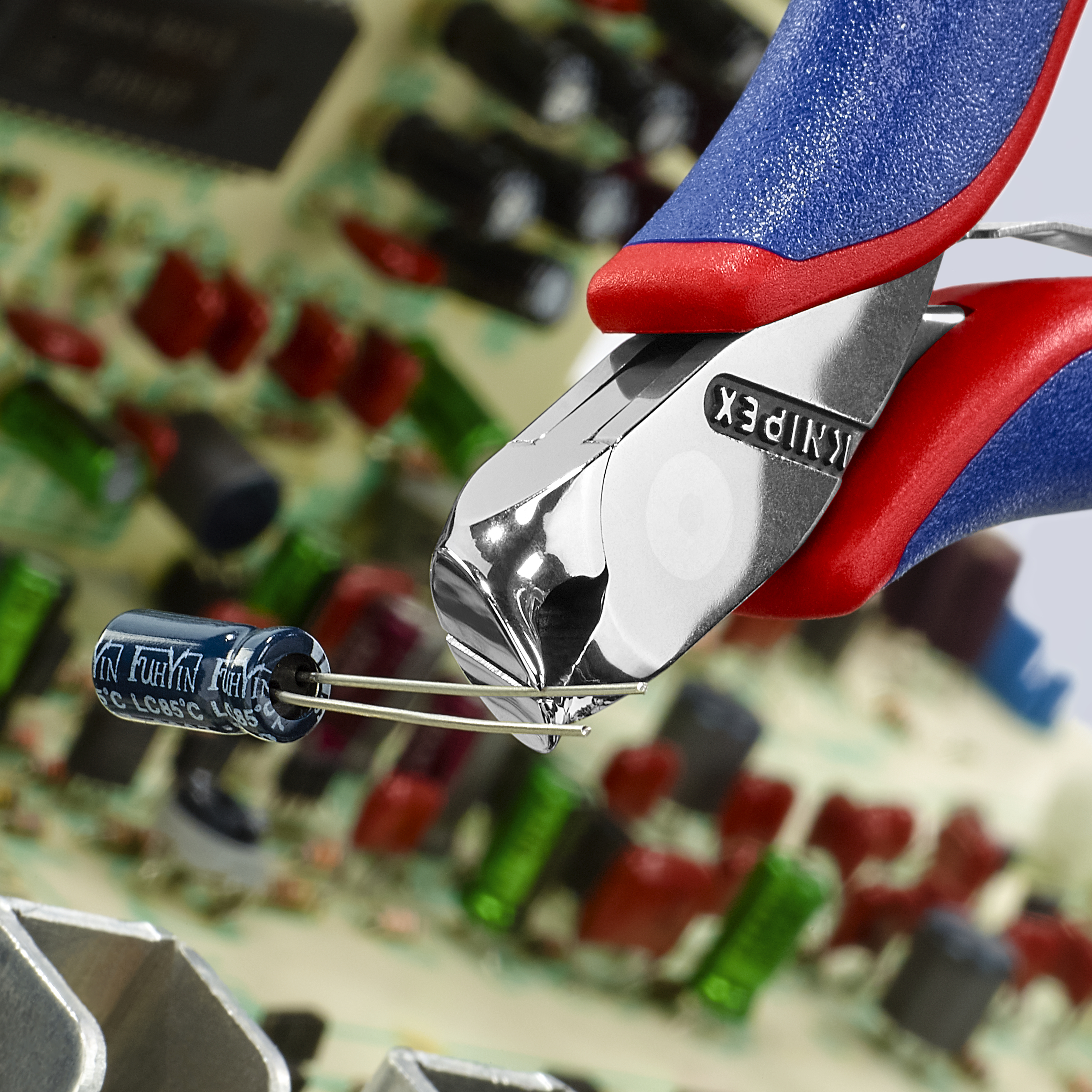

64 42 115 SB Electronics End Cutting Nipper Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics. Sturdy, zero backlash box joint. Low-friction double spring for smooth and even opening. The polish or mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools.

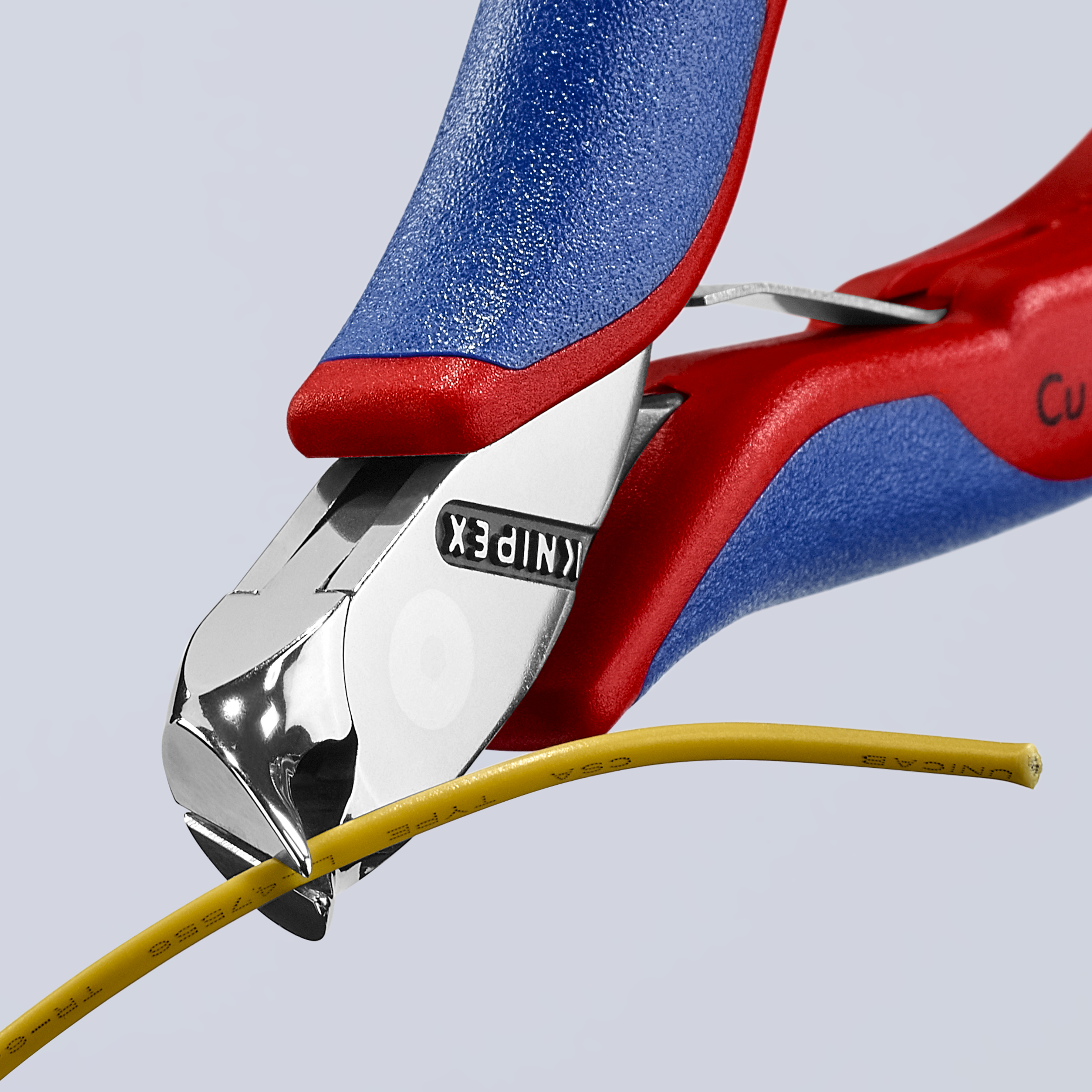

Cutting edges additionally laser-hardened, cutting edge hardness approx. 56 HRC. Oblique End Cutter, short head, with small bevel, α = 27°. - Cutting capacities soft wire (diameter): Ø 1.5mm- Cutting capacities medium hard wire (diameter): Ø 1.0mm- Cutting capacities hard wire (diameter): Ø 0.5mm- Head width (A): 11mm- Jaw length (B): 10mm- Jaw thickness (joint) (D): 7mm- Cutting edge length mm (C): 12mm

Specifications

• Artikelnummer: 64 42 115 SB
• Weight: 80 g
• Handles: with multi-component handles
• Head: mirror polished
• Application image 12: cutting edges with small bevel
• Blade length: 12 mm
• Cutting capacities hard wire (diameter): 0.5 mm
• Cutting capacities medium hard wire (diameter): 1 mm
• Cutting capacities soft wire (diameter): 1.5 mm
• Head angle: 27 mm
• Head width: 11 mm
• Jaw angle: Jaws, angled, 27° °
• Jaw length: 10 mm
• Jaw thickness (joint): 7 mm
• Joint design: box joint
• Form: Oblique End Cutter, short head, with small bevel, α = 27°
• Item length: 115 mm
• RoHs: n
• Euro slot: 1
• Product name receipt (16 characters): Electronic plier
• Item width: 84 mm
• Item height: 87 mm
• EFDE0001: -
• EFDE0001: false

Keywords: electronics, electronics end cutting nippers / esd, hand tools, pincers, industry, industry needs, knipex, cut, cutter, cutting tool, cutting pliers, end cutting nippers, pliers
