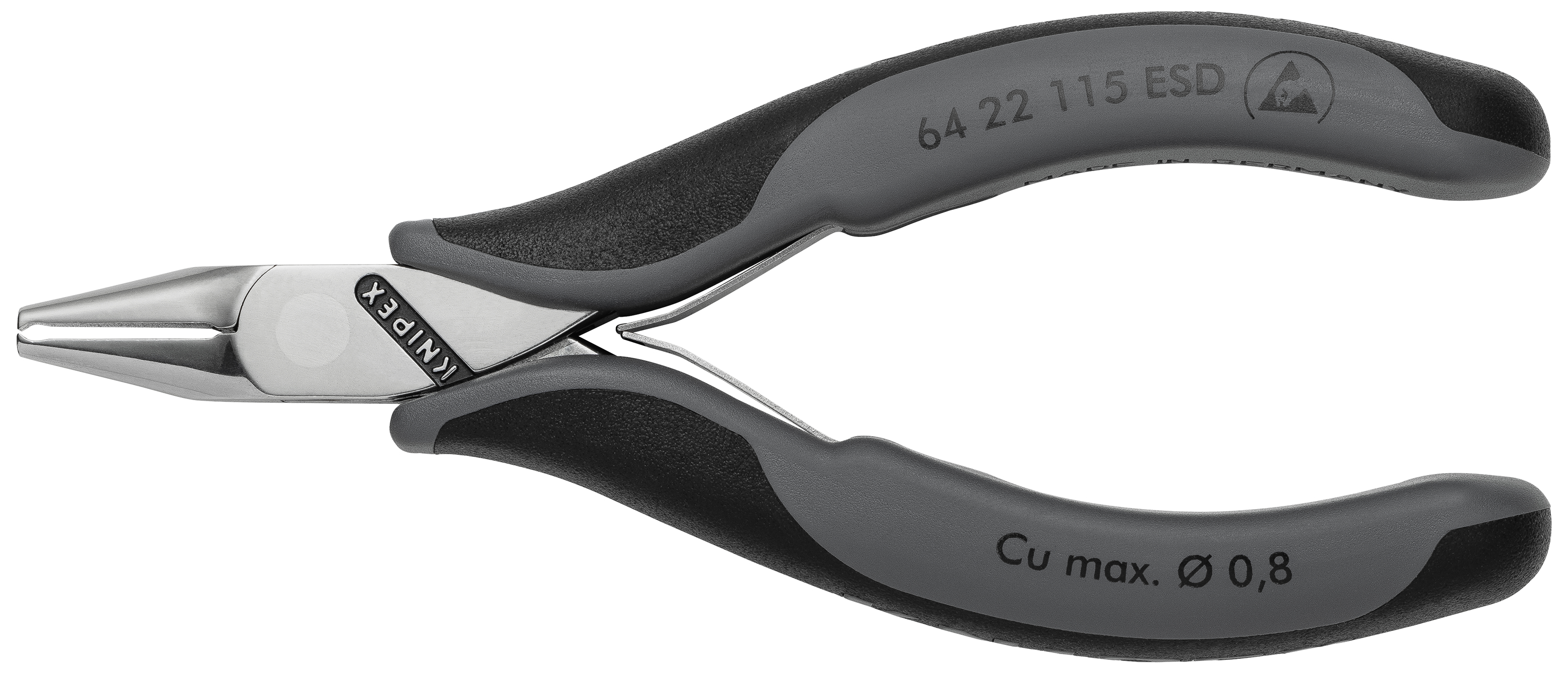

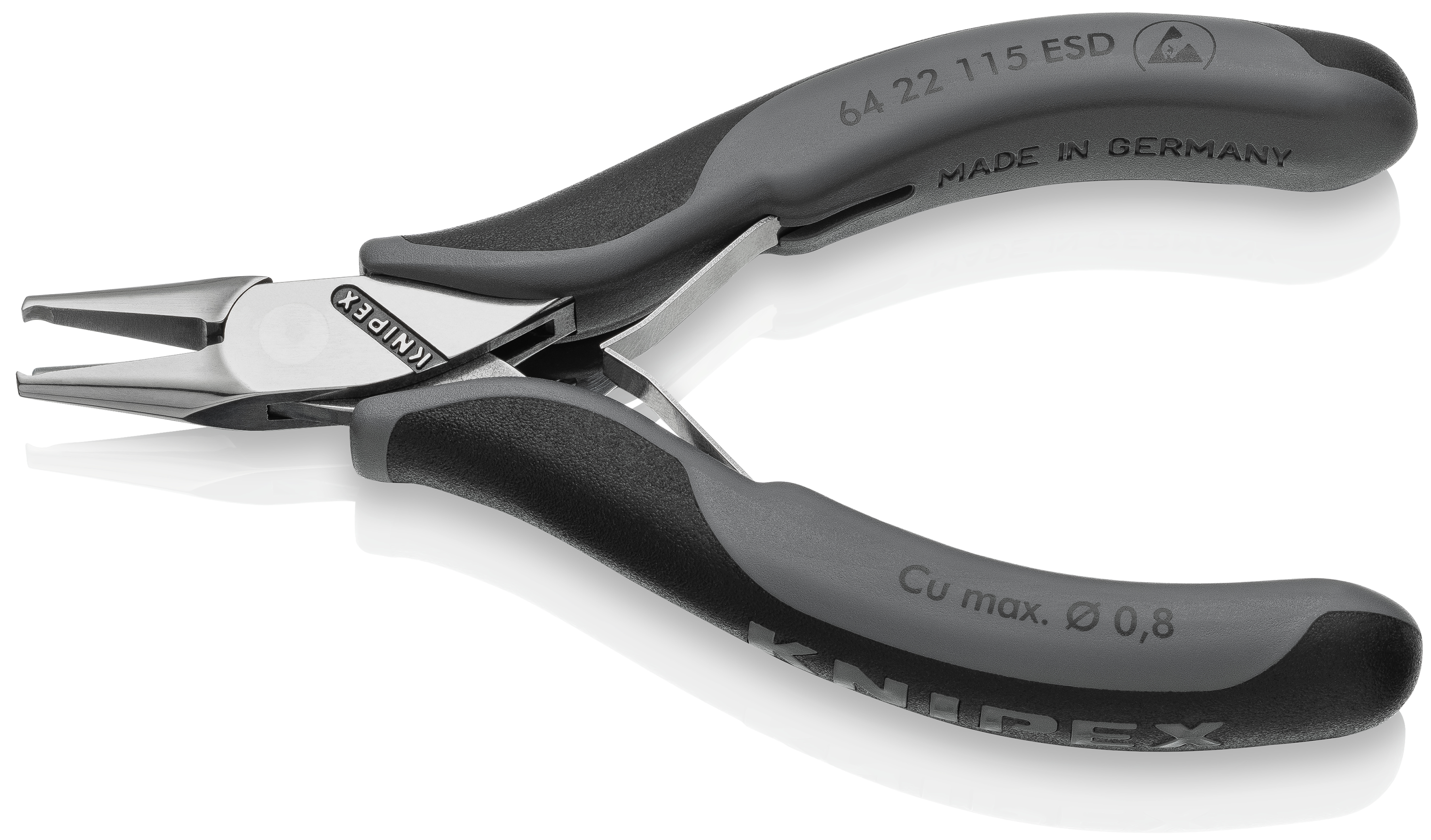

KNIPEX 64 22 115 ESD Electronics End Cutting Nippers ESD 115 mm with multi-component handles mirror polished

64 22 115 ESD Electronics End Cutting Nippers ESD Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics. Electrically discharging handles - dissipative. Sturdy, zero backlash box joint. Low-friction double spring for smooth and even opening. The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools.

Cutting edges additionally laser-hardened, cutting edge hardness approx. 56 HRC. Handles with two-colour multi-component grips black/grey. End Cutter, mini-blade with small bevel. - Cutting capacities soft wire (diameter): Ø 0.8mm- Head width (A): 11mm- Jaw length (B): 20mm- Jaw thickness (joint) (D): 6mm- Cutting edge length mm (C): 3mm- ESD: yes

Specifications

• Artikelnummer: 64 22 115 ESD
• Weight: 70 g
• Handles: with multi-component handles
• Head: mirror polished

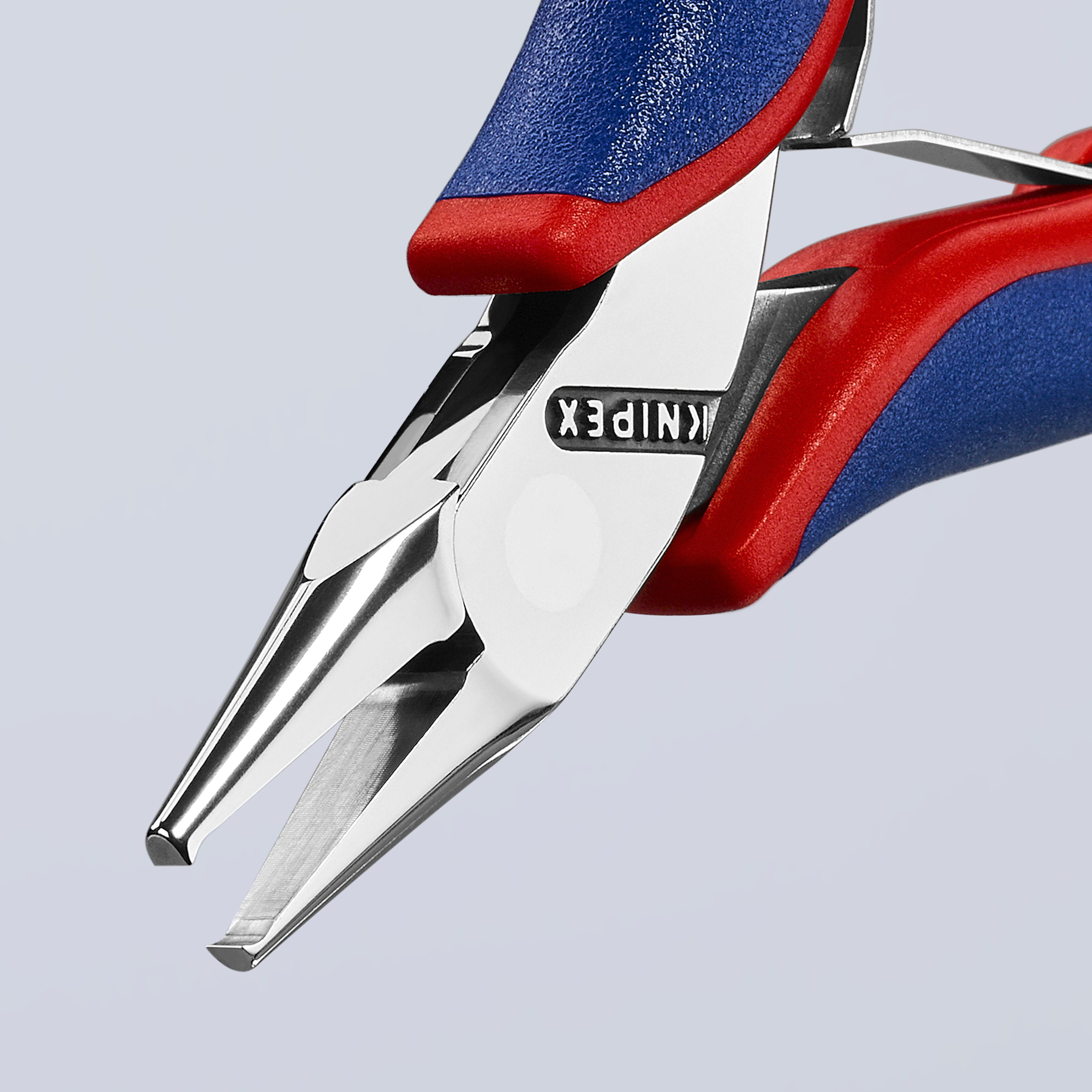

• Application image 12: cutting edges with small bevel
• Blade length: 3 mm
• Cutting capacities soft wire (diameter): 0.8 mm
• Head width: 11 mm
• Jaw length: 20 mm
• Jaw thickness (joint): 6 mm
• DIN: DIN ISO 9654, DIN EN 61 340-5
• Form: End Cutter, mini-blade with small bevel
• Item length: 115 mm
• RoHs: n
• Product name receipt (16 characters): Electronic plier
• EFDE0001: -
• EFDE0001: false
