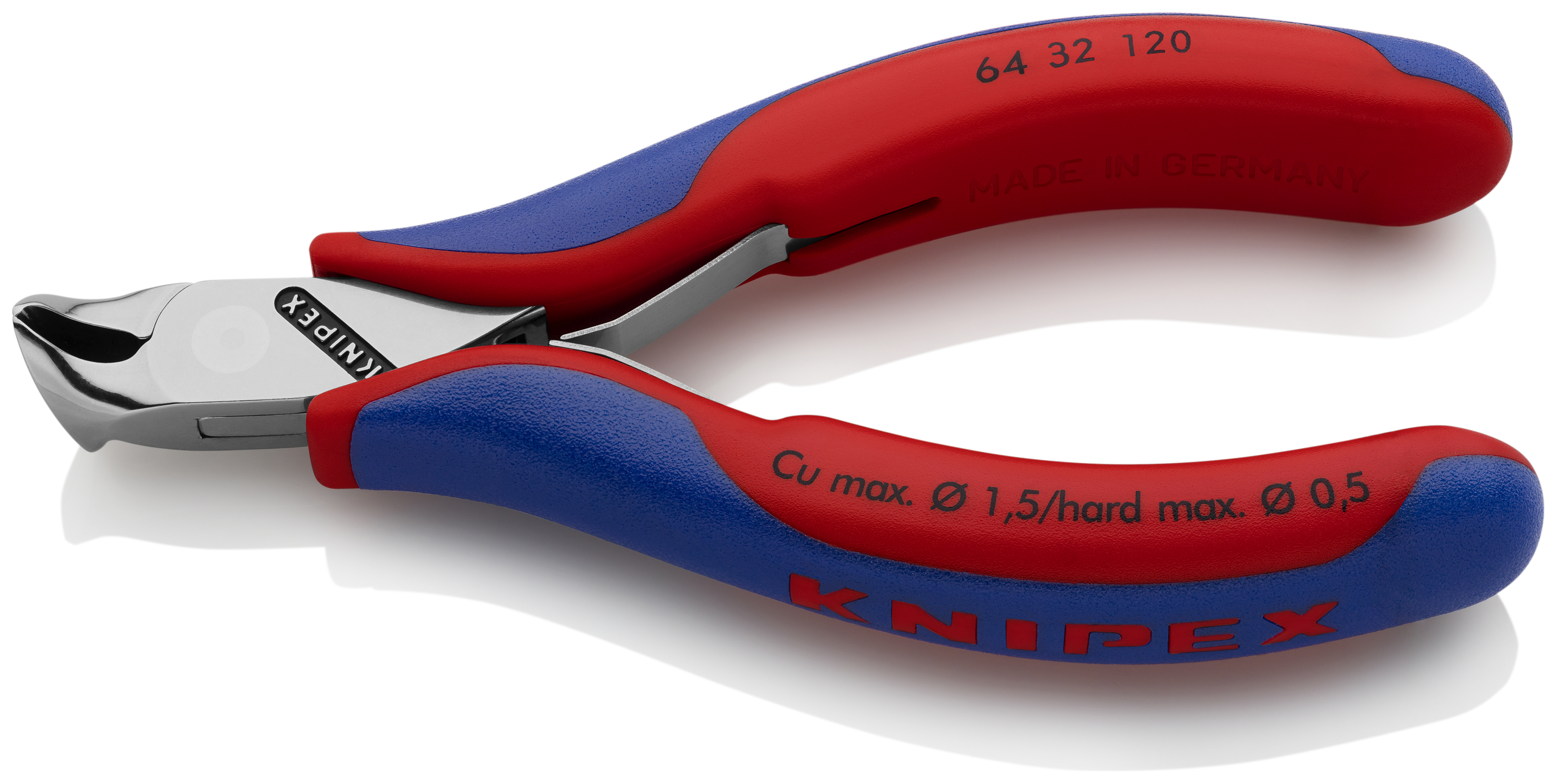

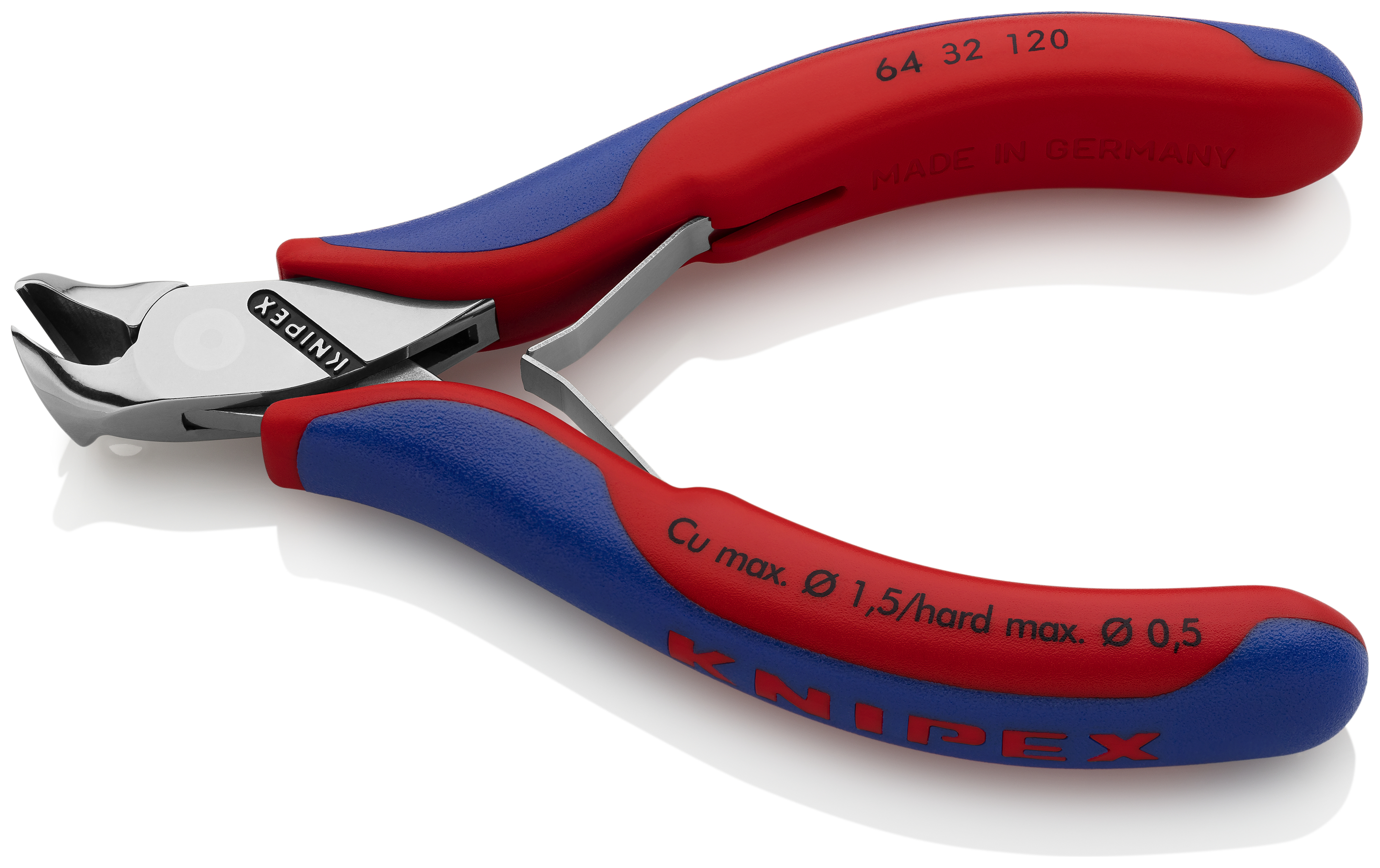

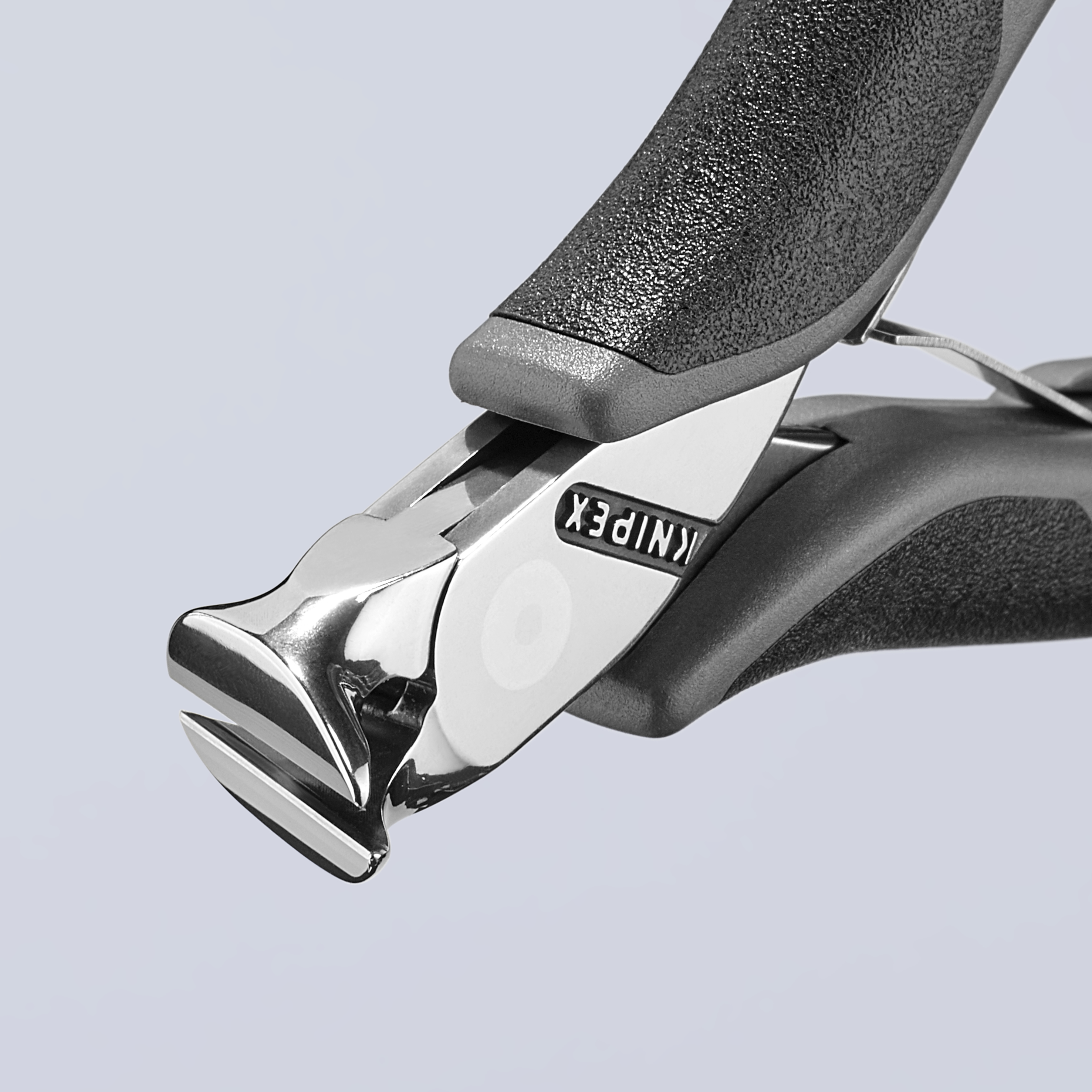

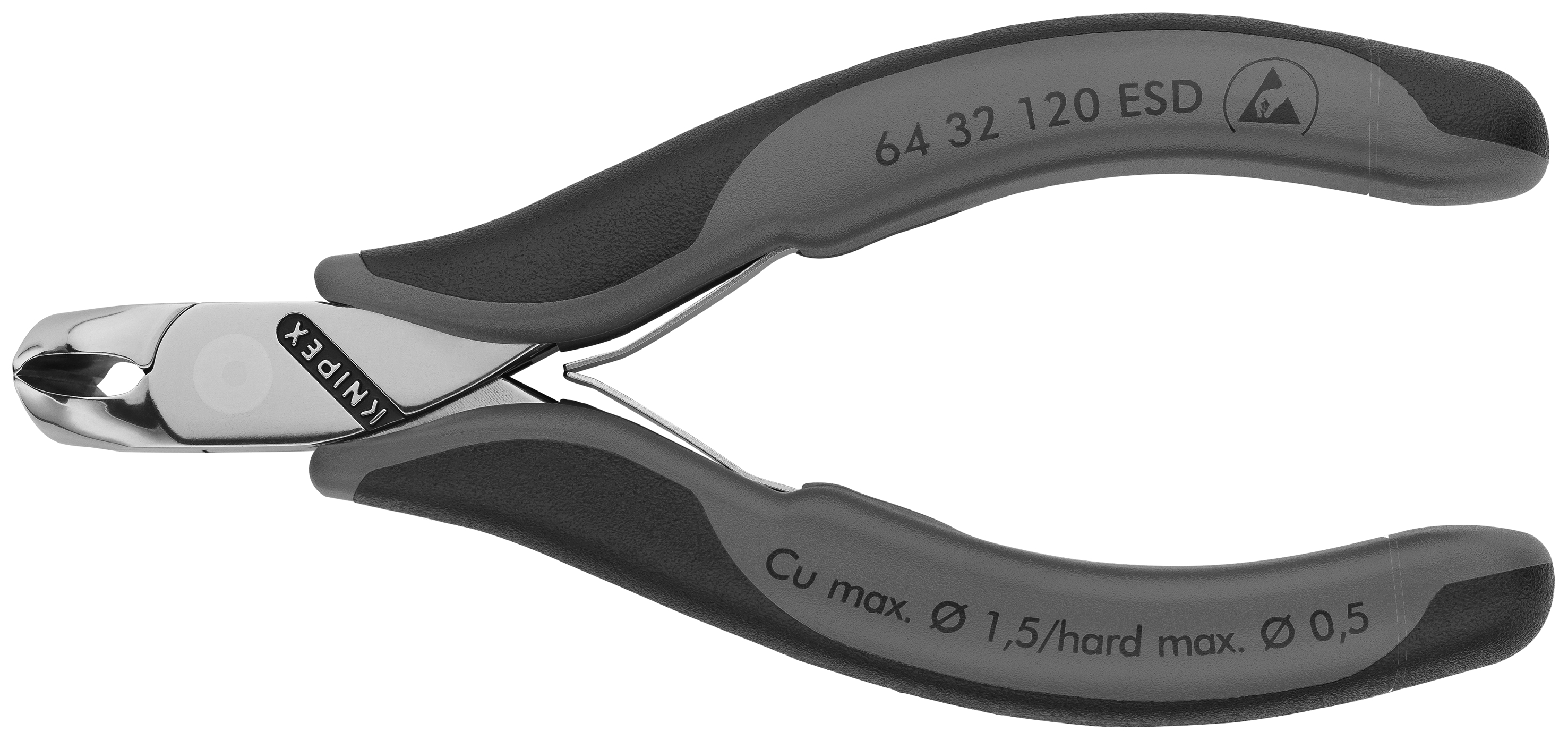

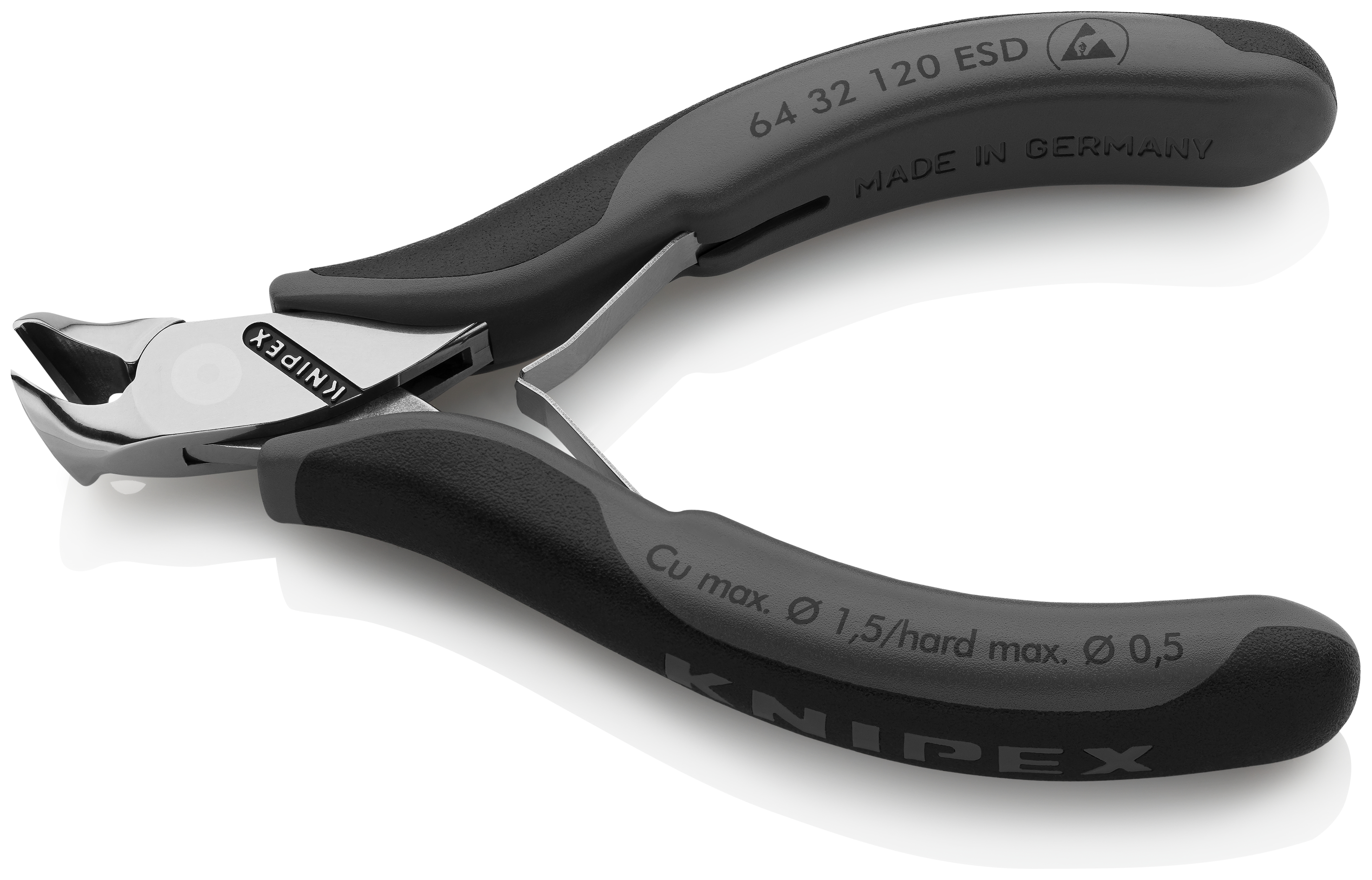

KNIPEX 64 32 120 ESD Electronics End Cutting Nippers ESD 120 mm with multi-component handles mirror polished

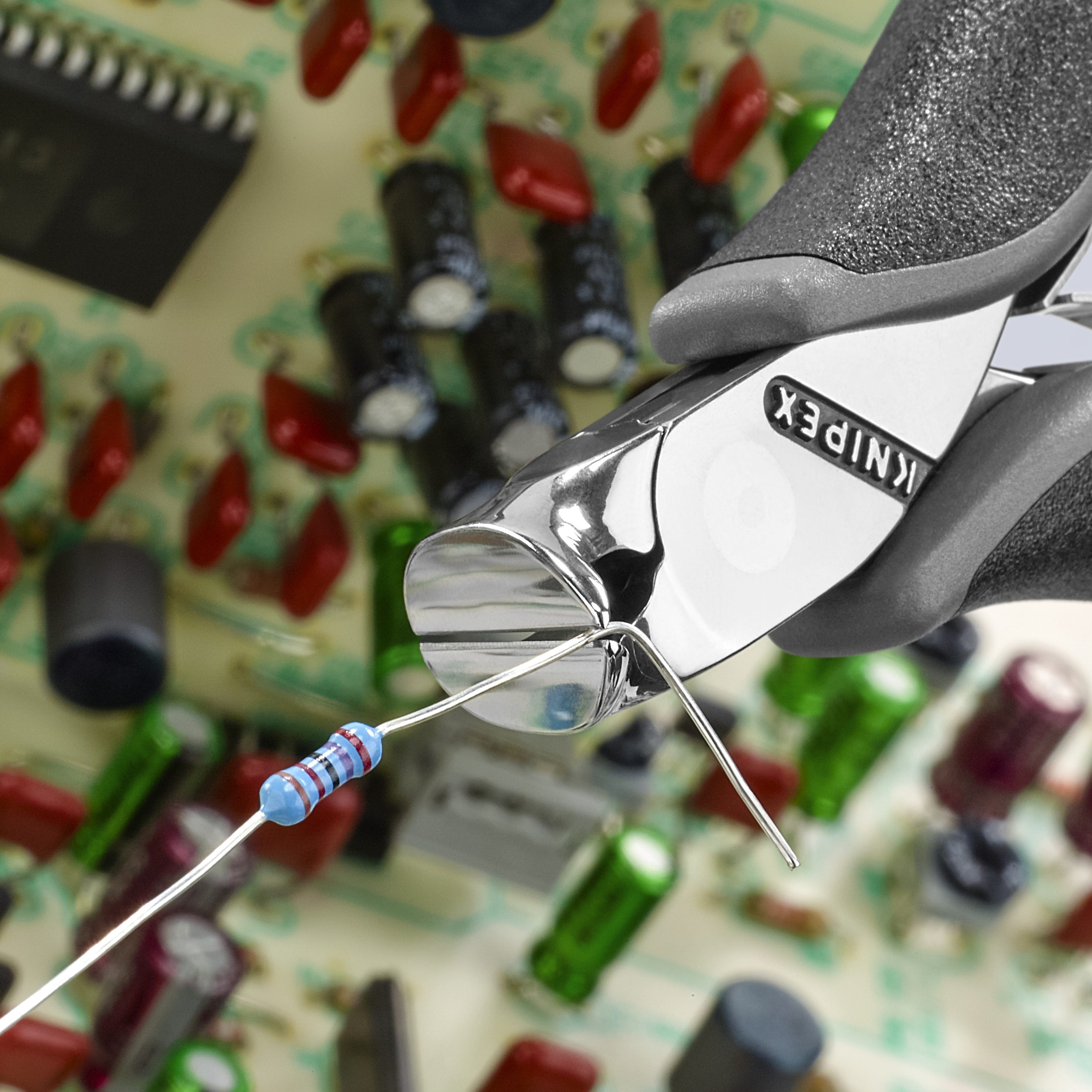

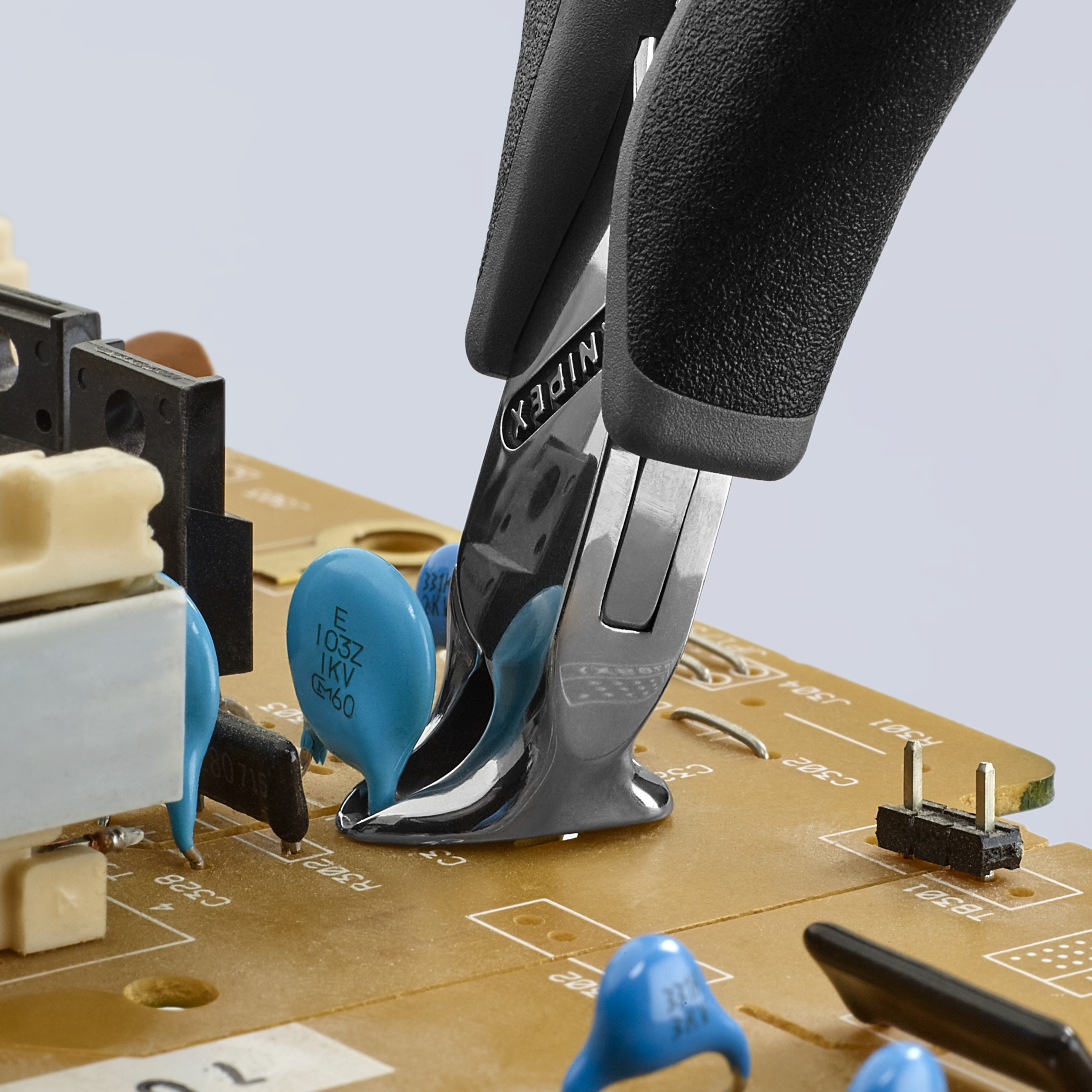

64 32 120 ESD Electronics End Cutting Nippers ESD Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics. Electrically discharging handles - dissipative. Sturdy, zero backlash box joint. Low-friction double spring for smooth and even opening. The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools.

Cutting edges additionally laser-hardened, cutting edge hardness approx. 56 HRC. Handles with two-colour multi-component grips black/grey.

Oblique End Cutter, short head, with small bevel, α = 15°. - Cutting capacities soft wire (diameter): Ø 1.5mm- Cutting capacities medium hard wire (diameter): Ø 1.0mm- Cutting capacities hard wire (diameter): Ø 0.5mm- Head width (A): 11mm- Jaw length (B): 10mm- Jaw thickness (joint) (D): 7mm- Cutting edge length mm (C): 17mm- ESD: yes

Specifications

• Artikelnummer: 64 32 120 ESD
• Weight: 70 g
• Handles: with multi-component handles
• Head: mirror polished
• Application image 12: cutting edges with small bevel
• Blade length: 17 mm
• Cutting capacities hard wire (diameter): 0.5 mm
• Cutting capacities medium hard wire (diameter): 1 mm
• Cutting capacities soft wire (diameter): 1.5 mm
• Head angle: 15 mm
• Head width: 11 mm
• Jaw angle: Jaws, angled, 15° °
• Jaw length: 10 mm
• Jaw thickness (joint): 7 mm
• Joint design: box joint
• DIN: DIN ISO 9654, DIN EN 61 340-5
• Form: Oblique End Cutter, short head, with small bevel, α = 15°
• Item length: 120 mm
• RoHs: n
• Product name receipt (16 characters): Electronic plier
• Item width: 59 mm
• Item height: 48 mm
• EFDE0001: -
• EFDE0001: false
